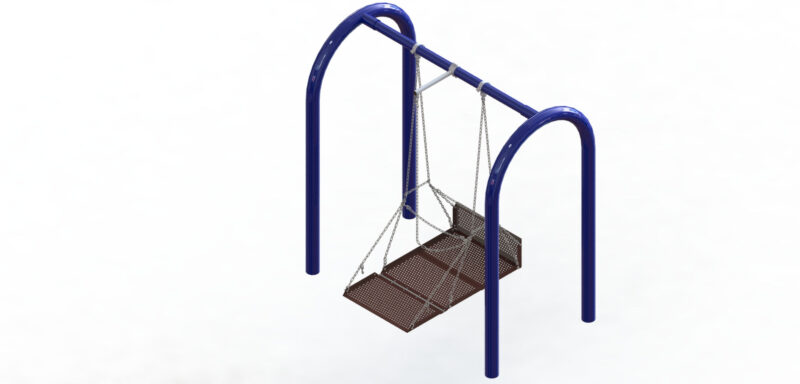

Sports Play ADA Arch Post Swing
An ADA arch post swing with a wheelchair platform. Choose 3.5″ OD or 5″ OD arch posts.
All steel used shall be FloCoat galvanized, triple-coat corrosion protection. Powder coated parts shall be painted with a dry polyester coating that shall be electrostatically applied and cured at temperatures between 400 and 500 degrees Fahrenheit.
Wheelchair platform shall be fabricated from 12 Gauge sheet steel that is 3⁄4” flattened and punched. Steel shall be thermoplastic coated and oven cured.
Standard swing hangers shall be stamped steel split clamp with ductile hanger and bronze bearings. Heavy Duty Hangers (optional) shall be galvanized ductile iron with oil impregnated bronze bearings.
Chain shall be hot dip galvanized 4/0 chain link. Material diameter is .218 inches. Nominal inside link dimensions 1.29” x .38” with a working load limit of 670 pounds.
